DIFALCO DESIGN

"SIMPLY THE BEST"











H.O. PARTS AND UPGRADES



DD553: HD30 Upgrade PCB. (This upgrade kit is for any model without a choke) Convert your DD515 or DD525 10 or 15 band Pro Plus or Fanatic H.O. controller to our new 30 band high definition design. You get the HD30 circuit board with a standard 290 ohm resistor network board installed. Simply unsolder a few wires and remove the old PCB. Transfer the original brake and sensitivity rheostats over to the new HD30 board. Now bolt the PCB to the frame and solder a few wires to their correct positions. Simple instructions included.  $62.00

DD554: HD30 Upgrade PCB. (This upgrade kit is for any model with a choke) Convert your DD520 or DD530 10 or 15 band Pro Plus or Fanatic H.O. controller to our new 30 band high definition design. You get the HD30 circuit board with a standard 290 ohm resistor network board installed. Simply unsolder a few wires and remove the old PCB. Transfer the original brake and sensitivity rheostats over to the new HD30 board. Now bolt the PCB to the frame and solder a few wires to their correct positions. Simple instructions included.  $62.00





TRIGGER KITS


DD719: Acu-Pivot Trigger Pin. Our new custom designed trigger pin makes it easy to take the side play and wobble out of your trigger. Simply screw our threaded pin to your turbo frame, install trigger, thrust washer and adjusting nut. Back off adjustment nut until trigger moves freely and you're done! Less trigger play means reduced wiper arcing, improved feel and consistent wiper tension for all controllers. Prevents the trigger screw from rubbing on the inside of the handle. This is almost the best money you will spend on your controller. 3/card @ $4.00 each $12.00

DD720: Ball Bearing Upgrade Kit. Ball bearings, spacers and shims needed to correctly install ball bearings in older Difalco controllers or modules already using our DD719 trigger pin. Very easy to install.  $11.98

DD721: Ball Bearing w/Trigger Pin Kit. This is the best money you will spend on your controller! Add ball bearings to any brand controller or older 10 band Difalco controllers. Removes all side play, lightens up the trigger response, and lets the trigger snap back to the brake contact while still maintaining excellent wiper button tension. This kit includes our threaded trigger pin needed to correctly install ball bearings in your module conversion on turbo frames.  $15.98




RHEOSTATS, TRANSISTORS AND REPAIR PARTS


DD551: Brake/Coast Switch. Replacement toggle switch used to select brake or coast feature. $8.00

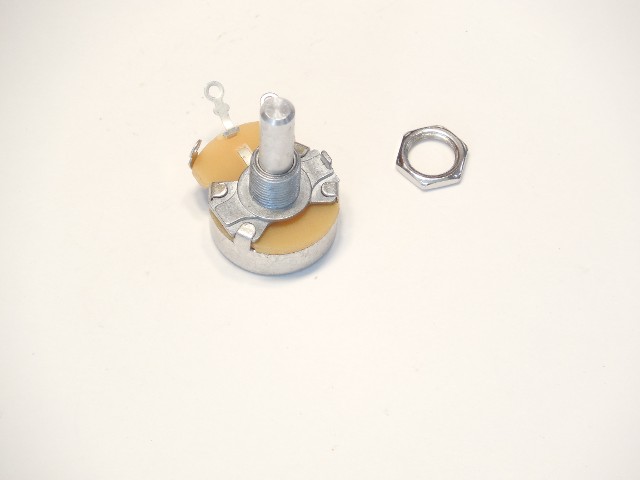

DD552: Brake/Coast Rheostat. 100 ohm rheostat used to adjust brakes or coast power.  $14.00

DD814: Controller Trigger Shunt. Flat bare copper braid with terminal, much more flexible than tinned track braid, replacement for all Difalco controllers.  $3.00

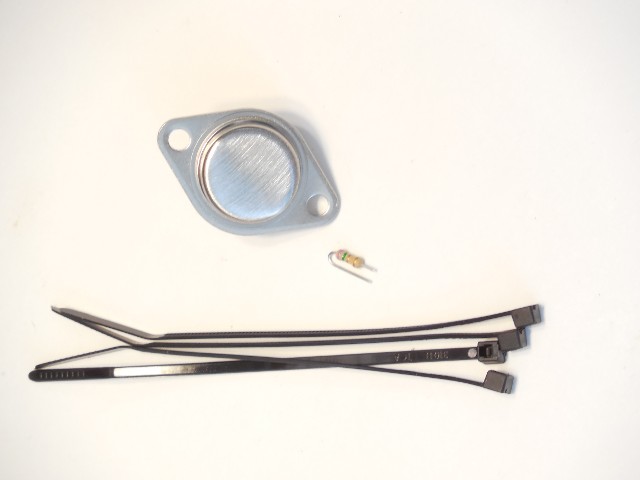

DD830: Power Transistor. Large silver transistor used on "E"Motion and Genesis electronic controllers and modules.  $14.00

DD330: Power Transistor. Square black transistor with 3 leads. For all Neo controllers.  $9.00

DD841: Knob.  1/4" replacement knob for all sensitivity and economy brake rheostats.  $3.50
