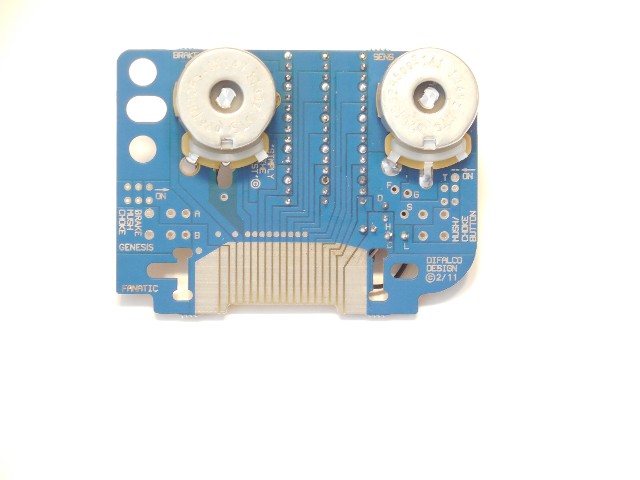

        Typical module circuit board                     Heatsink / Transistor Module                        Typical handle wiring                                   Heatsink wiring






GENESIS MODULES



Our new Genesis modules are designed to be installed on standard Parma Turbos and convert them to state of the art electronic controllers for a great price. You can also add our DD277 frame, wire and ball bearing kit to build a factory style controller for less.



Design overview: Our new Genesis modules are much easier for the average racer to build requiring less skill with better controller performance. The heatsink has been moved from under the handle to the track panel for a simple lightweight handle design. Now racers simply cut off the alligator clips and solder the wire ends to a circuit board to install the heatsink. The top wiper board mounts on the Turbo frame using two brackets. The brake fuse, as well as the new transistor fuse, are factory installed for simpler wiring. All modules come with our BLAST relay and 12 ga. wire already installed. Adding the DD721 ball bearing kit will really improve the mechanical reliability and feel when using a turbo frame. Instructions are totally revamped with new text and digital photos. These kits are positive polarity only.





GENESIS PRO MODULE



DD273: Pro Module. Our new low priced module now has a 17 band design with a new multi- range adjustment pot. The sensitivity range has been slowed down to better match Falcon,16d up to G20 type motors. An adjustable Fanatic type pot allows the racer to shift the band sensitivity up to 165 ohms or down to 115 ohms to match their type motor. Economy brake rheostat. 12 ga. heatsink wires and BLAST full power relay are pre-installed on the heatsink/transistor assembly. $93





GENESIS FANATIC MODULE



DD274: Fanatic Module: Our most versatile module, especially if you race multiple scales or wing cars! This module features 17 total bands with 15 adjustable Fanatic pots. New super wide range 20 ohm Fanatic pots can run any car from homeset 1/32, H.O. up to the fastest G7 motors by adjusting the Fanatic pots with a twist of a screwdriver. Economy brake rheostat.12 ga. heatsink wires and BLAST full power relay are pre-installed on the heatsink/transistor assembly.  $119





GENESIS HD30 MODULES



Our HD30 design has 30 bands for excellent speed control in the turns and still allows for tuning individual bands. All HD30 models come standard with a 148 ohm HD30 network (medium response) installed which is best suited for Falcon,16d and G12 type motors. Optional plug in networks are available to run 1/32, H.O., Retro up to the fastest G7 motor. Both modules have 12 Ga wire and a full power relay pre-installed on the heatsink/transistor assembly.



DD275: HD30 Module: 30 band module with economy brake rheostat. 12 ga. heatsink wires and BLAST full power relay.  $132

DD276: HD30 Module: 30 band module with heavy duty Pro brake rheostat. 12 ga wires heatsink wires and BLAST power relay.  $179




MODULE ACCESSORIES

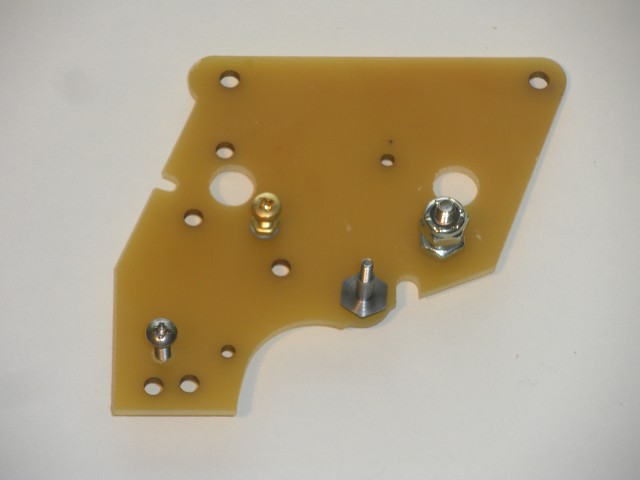

DD277: D.I.Y. Frame, Wire and Ball Bearing Kit. New kit features our exclusive fiberglass frame and longer super flexible 14 ga wires (wires only carry braking current) from the handle to the heatsink module. Now includes our DD721 Ball Bearing kit w/trigger pin that eliminates any trigger side play and lightens trigger response with consistent wiper button tension. Use the trigger assembly, clips and handle from your old Parma controller, our frame kit and the module of your choice to build a factory style controller at a big savings.  $52.00



DD720: Ball Bearing Upgrade Kit. Ball bearings, spacers and shims needed to correctly install ball bearings in older Difalco controllers or modules already using our DD719 trigger pin. Very easy to install.  $11.98

DD721: Ball Bearing w/Trigger Pin Kit. This is the best money you will spend on your controller! Add ball bearings to any brand controller or older 10 band Difalco controllers. Removes all side play, lightens up the trigger response, and lets the trigger snap back to the brake contact while still maintaining excellent wiper button tension. This kit includes our threaded trigger pin needed to correctly install ball bearings in your module conversion on turbo frames.  $15.98
